Jensen A-21 Jukebox Amplifier
The Jensen A-21 is a valve amplifier originally used in Danish Jensen / IMA-AMI jukeboxes of the mid-1950s. Unlike the domestic table radios in this collection, this unit was not built as a complete receiver, but as the audio amplifier section of a coin-operated music machine. It belonged to a world of cafés, dance halls and public entertainment rather than the private living room.
The A-21 was used in Jensen J-80 and J-120 jukeboxes. These machines played 45 rpm records and offered 80 or 120 selections, depending on the model. Contemporary documentation lists the A-21 with a tube line-up of 1 × 5U4, 2 × 6L6G and 2 × 6SN7, a typical configuration for a robust mono jukebox amplifier of the period.

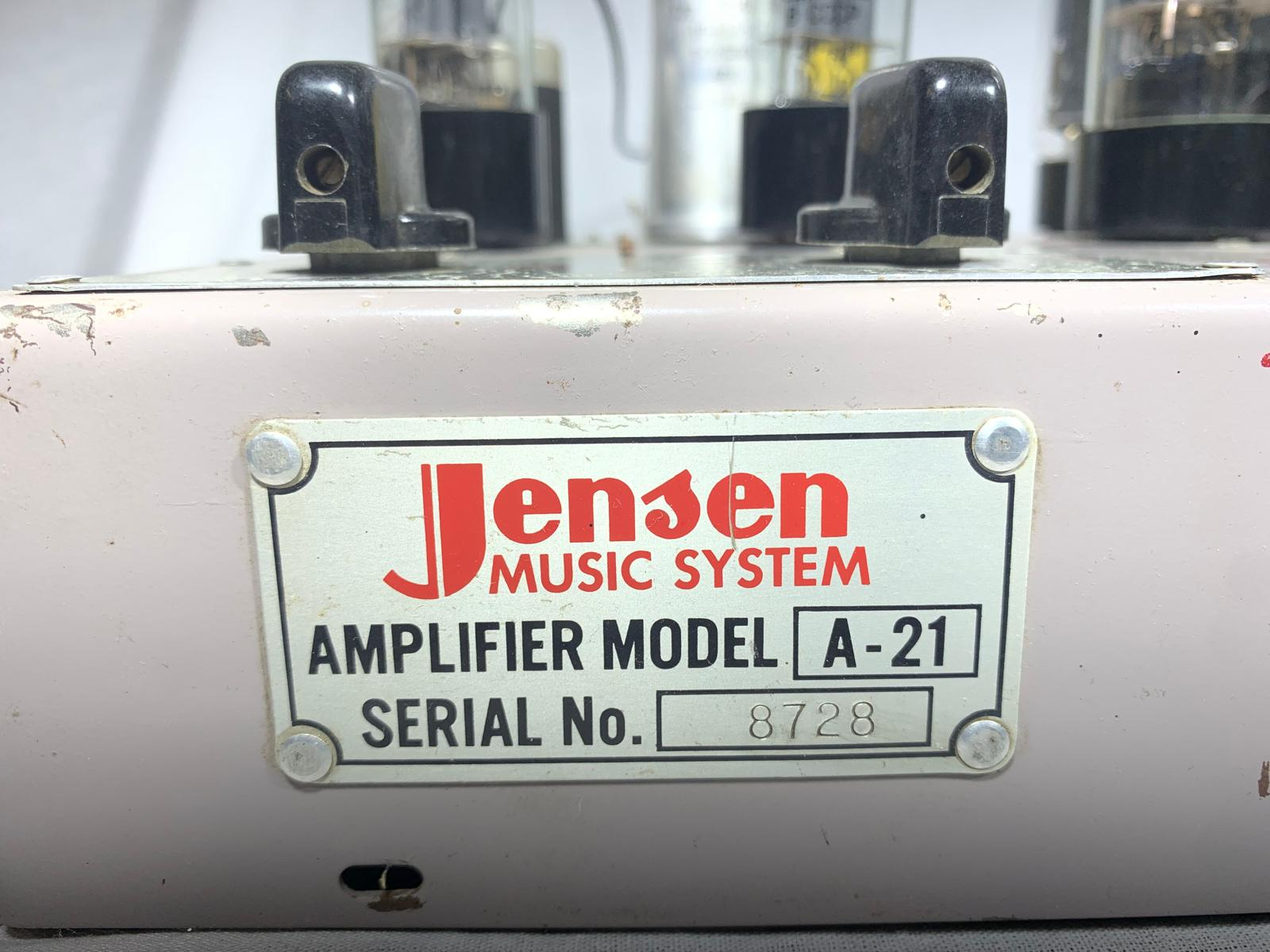

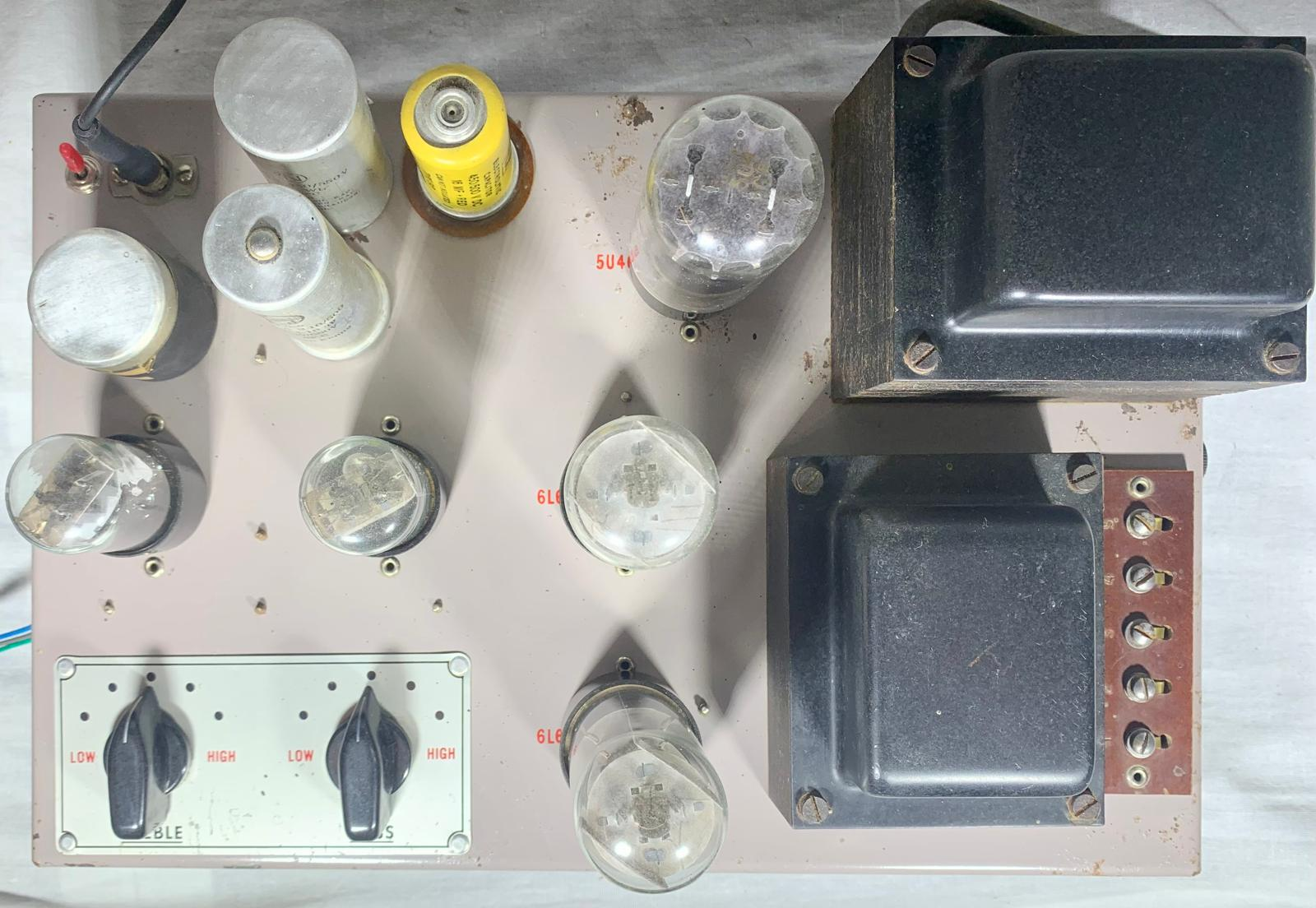

The construction is very different from a normal radio chassis. The amplifier was designed as a functional built-in module: a metal chassis, large transformers, serviceable wiring and a layout intended for long operating hours. In a jukebox, reliability and sufficient audio power were more important than domestic styling. The visible Jensen Music System badge, model number A-21 and serial number give the unit a strong industrial character.
Historically, this amplifier is interesting because it represents the European jukebox industry of the 1950s. Jensen was one of the important Danish jukebox manufacturers, later closely associated with IMA-AMI machines. The J-80 and J-120 models belong to the period when 45 rpm singles had become the standard medium for jukeboxes, replacing the older 78 rpm era.
Condition
This Jensen A-21 amplifier is preserved as a functional jukebox amplifier. The tubes have been replaced and the unit is working. Cosmetic restoration has not been the main focus; the amplifier still shows its age and its origin as a service component from a jukebox.
The unit is therefore especially interesting for collectors of jukeboxes, vintage valve audio equipment or Jensen / IMA-AMI machines. It is not a decorative radio receiver, but an authentic technical module from a mid-century music machine.
Availability
This amplifier is not part of the core radio collection and may be available for sale. Please contact me if you are interested in this Jensen A-21 jukebox amplifier.
Technical Data
Manufacturer: Jensen Music System
Model: A-21
Type: Jukebox valve amplifier
Application: Jensen / IMA-AMI jukeboxes, including J-80 and J-120
Period: mid-1950s
Amplifier type: mono valve amplifier
Tube line-up: 1 × 5U4, 2 × 6L6G, 2 × 6SN7
Serial number: 8728
Condition: new tubes, working
Cabinet: built-in metal amplifier chassis, no separate radio cabinet
References and Further Reading
Jukebox-World – Jensen J-80 / J-120
Model overview and technical data for the Jensen J-80 and J-120 jukeboxes, including the A-21 amplifier and tube line-up.
Jukebox Guide – Jensen, Denmark
Overview of Danish Jensen jukebox models and their amplifiers.
pin-games.se – Jensen (IMA-AMI & BEL-AMI) AMI verwendete Jukebox-Teile
Pictures
